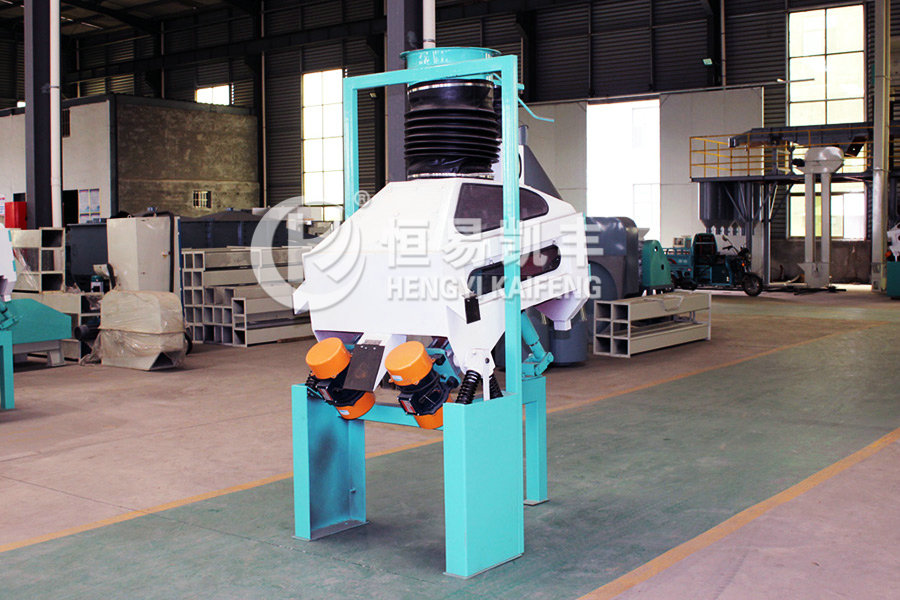

Desander
TQSF type gravity grading stone remover uses the combined action of sieving and air flow for grading stone removal
It is mainly used for the first cleaning of activated carbon particles, removing impurities and stones. It can also be used for the cleaning and selection of grain, feed, chemical industry and medical treatment.
The machine has the characteristics of high production efficiency, convenient maintenance, no dust, low noise and good cleaning effect.
| 參數 parameter 型號 Model | 篩寬（cm） Sieve size | 風壓（Pa） Wind pressure | 產量（t/h） Output | 動力（Kw） Power | 吸風量（m3/h） Volume | 重量（Kg） Weight | 外形尺寸（mm） Outline size |
| TQSF50 | 50 | ＜980 | 4-6 | 2*0.25 | 4000 | 230 | 1420*780*1800 |
| TQSF63 | 63 | 5-7 | 4500 | 280 | 1450*876*1800 | ||
| TQSF80 | 80 | 7-9 | 6000 | 340 | 1450*1046*1800 | ||
| TQSF100 | 100 | 9-11 | 8000 | 400 | 1500*1246*1900 | ||
| TQSF125 | 125 | 11-16 | 10200 | 500 | 1500*1496*1920 | ||
| TQSF150 | 150 | 12-18 | 2*0.37 | 12000 | 610 | 1500*1746*1800 | |
| TQSF180 | 180 | 18-23 | 14000 | 820 | 1500*2046*1850 |
